F5K | Electric Launch

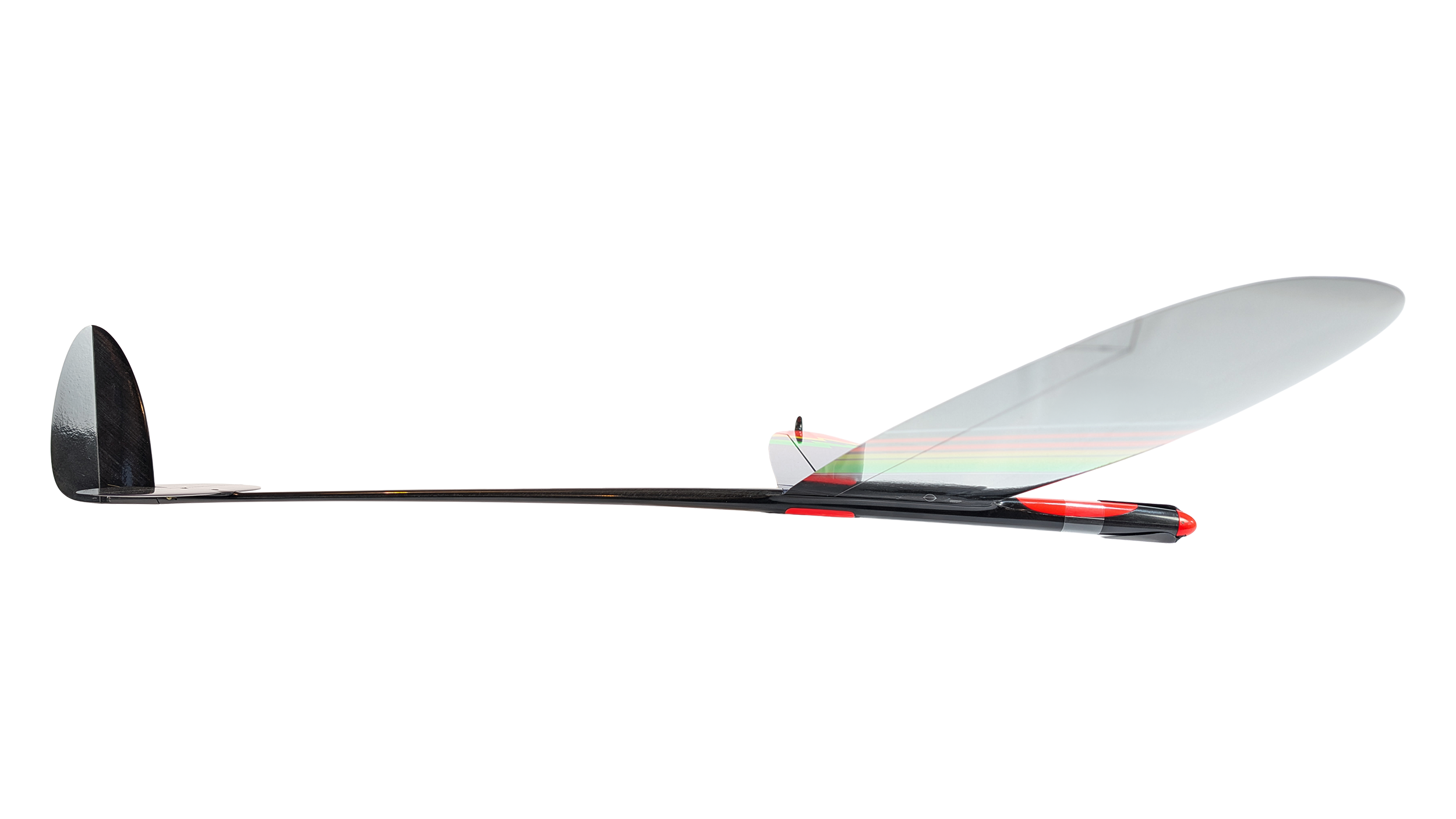

The Shaman F5K uses the same wing from the Shaman family paired with an Electric fuselage.
F5K models include a Ston Models' carbon propeller and 25mm spinner.
Build Options:
Kits include prop, spinner, motor mount, servo trays, pushrods, pull strings, control horns, and all necessary hardware for completion.
RTF options arrive with Chaservo LV06 or HV06 servos installed at the Ston Models factory.
RTF with power adds a 1507 3650KV motor and 14 amp electronic speed control factory installed, optimized for 2s power.
Additional Options:
Ballast kits and wing covers are available separately.

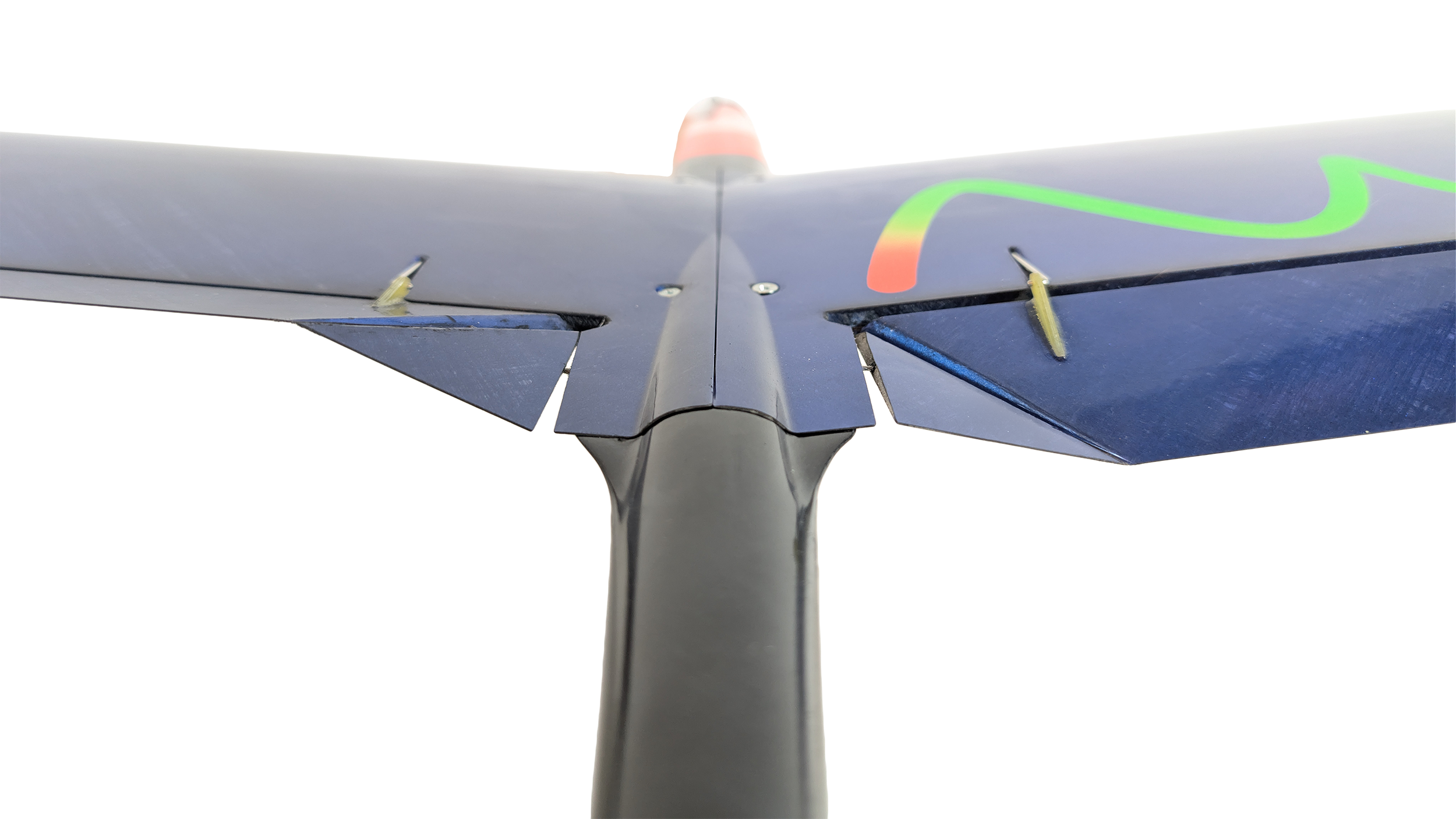

Triangular Aileron Transitions
At each aileron end, unique hinged transition pieces create a tapered connection between the control surface and the wing. This innovative design minimizes vortices and drag at the ends of the ailerons, delaying stall onset while simultaneously enhancing overall performance and handling.
Refined Fuselage Design
The fuselage’s subtle curve and minimized cross-section reduce drag across all phases of flight.

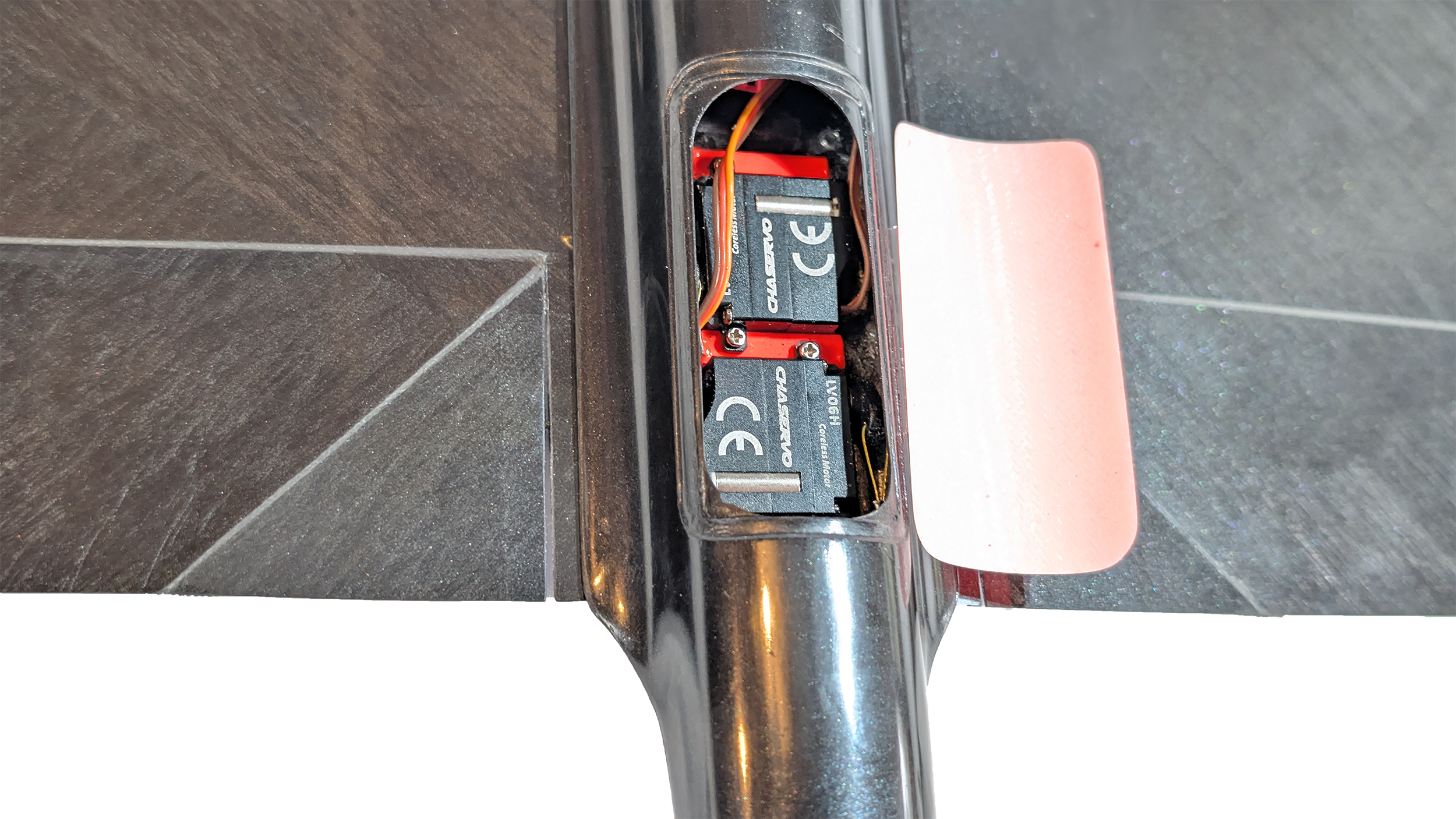

Balanced F5K Setup
The Shaman F5K fuselage relocates the servos to a convenient hatch under the wing, achieving perfect balance, and leaving the nose open for the power system.

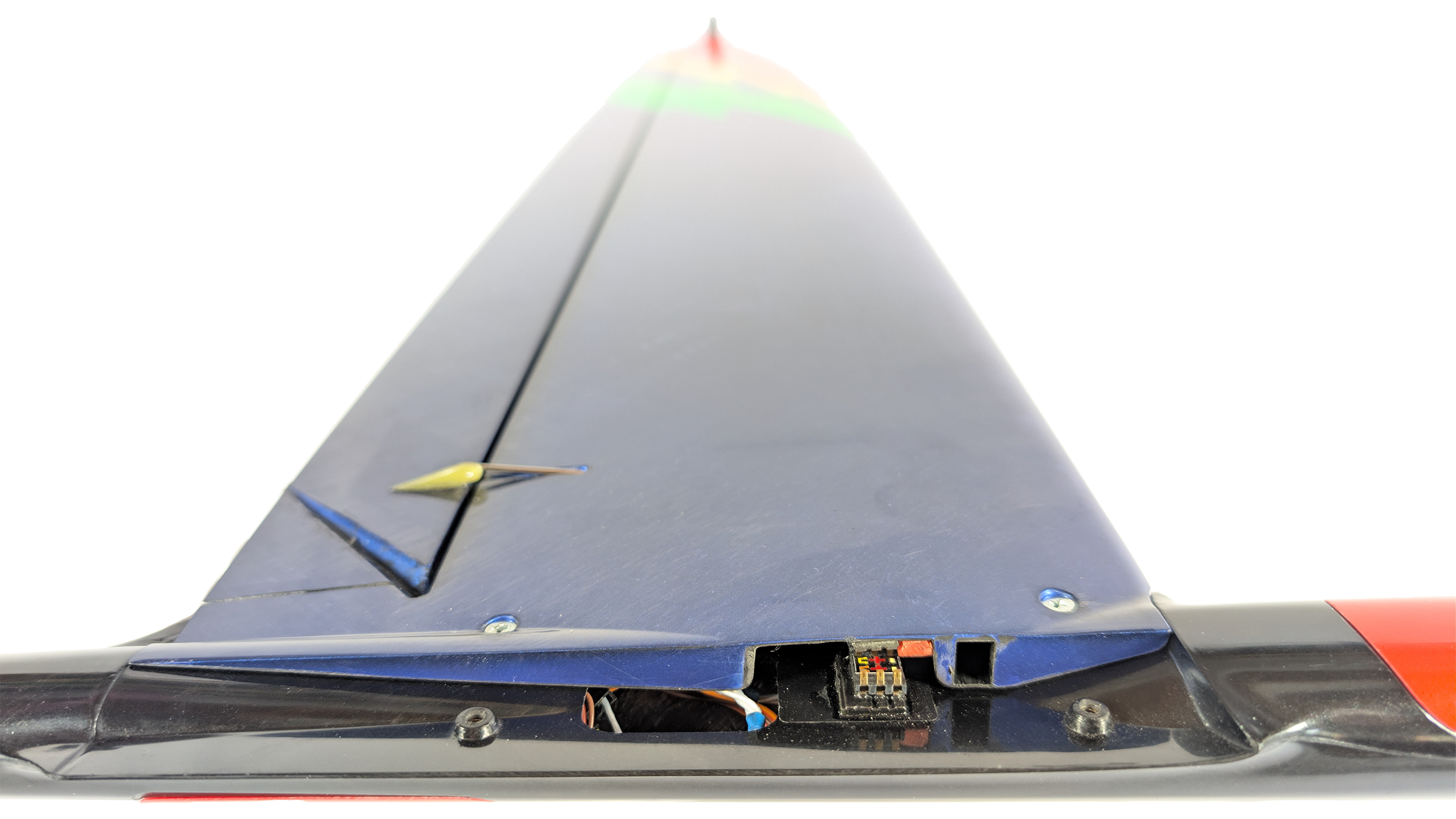

Two Piece Wing
The flared wing-fuselage interface is engineered to further reduce drag, creating a smooth aerodynamic transition that is strong and efficient. The two-piece wing mounts securely on top with four screws, delivering quick assembly and rock-solid strength. Spring contacts replace traditional servo leads and plugs, making setup fast and reliable.

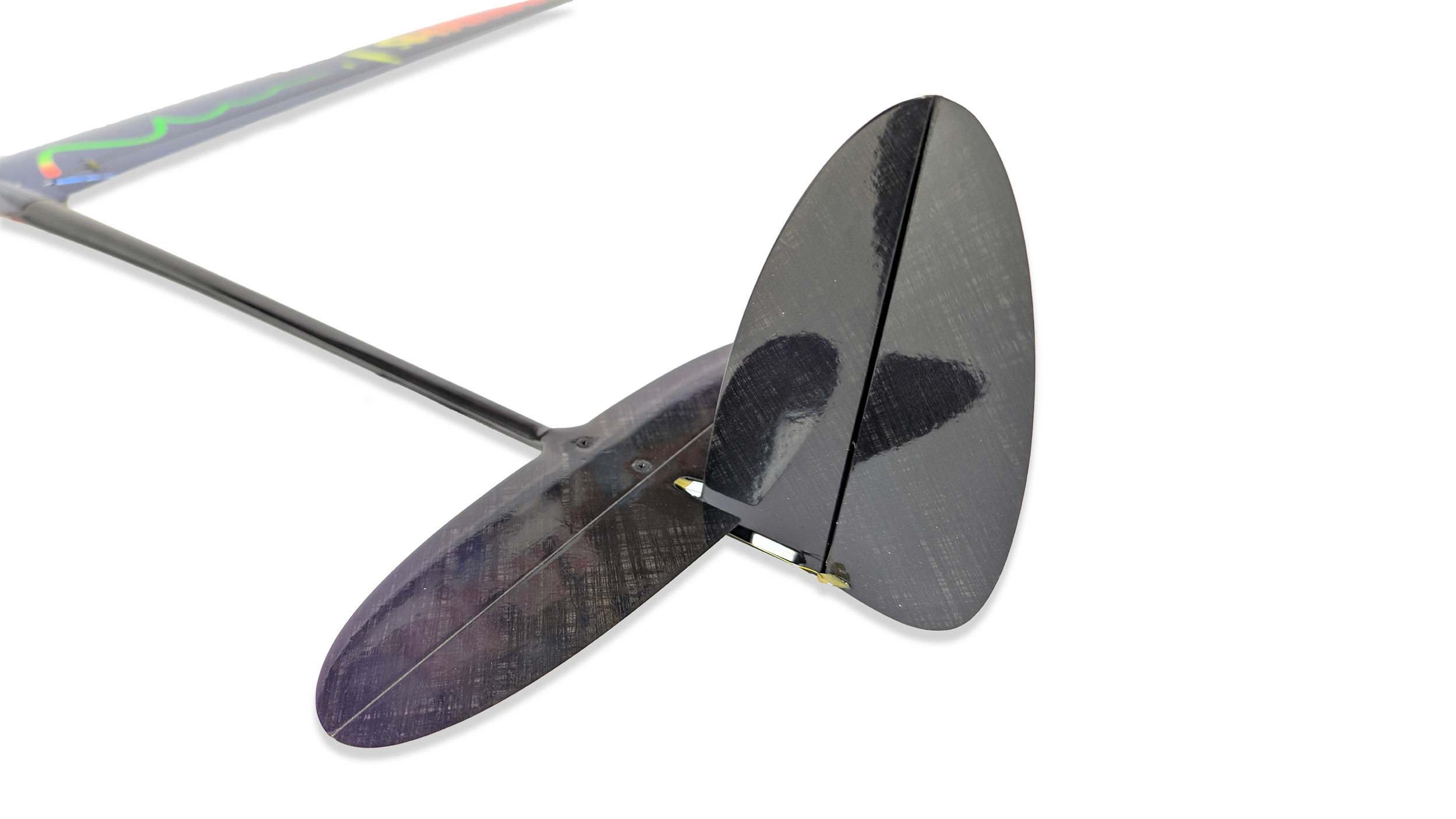

F5K Stabilizer
The electric fuselage has a traditional flat stabilizer and special F5K fin for precise control.
